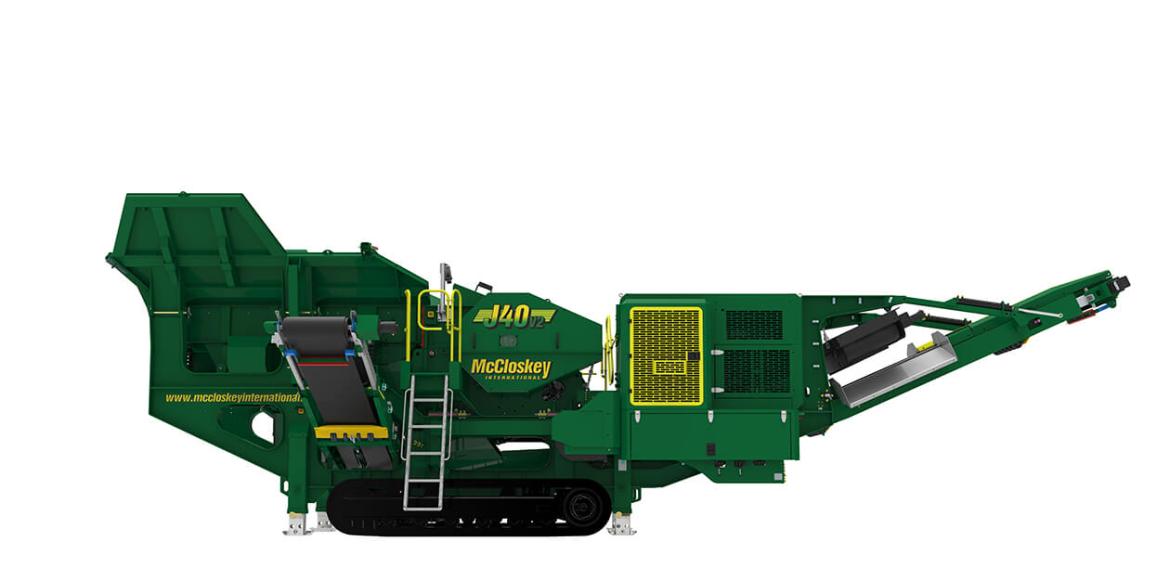

Technical data J40 Jaw Crusher

Engine* 166kW (225HP)
Feed Opening** 1016mm (40") x 610mm (24")
Crusher Speed 300 rpm
Grizzly Feeder 3840mm (12'-7") x 950mm (37'-4")
Hopper Volume 5.4m³ (7.4yd³)
Stockpile Height Main Conveyor 11' 4.2" (3.45m)
Stockpile Height Side Conveyor 8' 2" (2.50m)

The J40 Jaw Crusher continues McCloskey’s focus on quality, durability, and productivity. With its heavy duty cheekplate design, 40″ wide jaw and user-friendly control panel with excellent machine diagnostics, the J40 jaw crusher provides contractors with a highly portable option while meeting all production expectations. At 2.5 metres wide, the J40 jaw crusher is ideal for applications that require a high degree of mobility.

Maximum productivity is delivered through the enhancements to the deep jaw box, including a faster jaw speed and a larger gap between the crusher discharge and main conveyor feedboot. The J40 retains the core values expected in a full size McCloskey jaw crusher, including high capacity production and heavy duty build, packaged for efficiency and mobility.

Features

  • True 1016mm (40") x 610mm (24") jaw
  • Hydraulic direct drive grizzly feeder
  • High capacity hydraulic folding hopper
  • 900mm (36") main conveyor
  • User friendly control panel
  • Ideal 2.5m (8' -2.5") wide transport size
  • Optional overband magnet
  • 10 minute set up time
